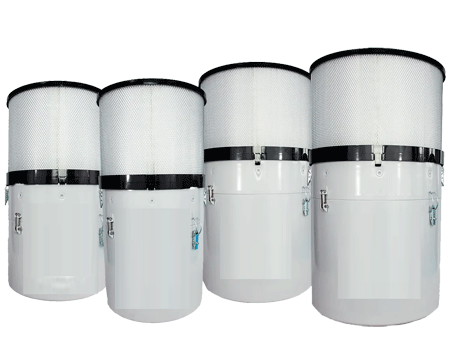

fx-series Oil Mist Collectors

FX Series

Multiple Mounting Options

FX oil mist collectors are available with a number of mounting options including floor stands, machine mounts and the mobile CSX unit.

Worldwide Compatibility

NDSRIndia oil mist collector units are used in more than 60 countries worldwide and are designed to operate efficiently on a wide range of industrial power supplies.

Stainless Steel

NDSRIndia FX and S series oil mist collectors are available in standard mild steel construction and also stainless steel versions for use in hazardous or corrosive environments.

Model Airflow
m3/hr
Motor 1 A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
Kg
Noise
dBA
FX4002 1250 @ 50Hz
1500 @ 60Hz
1.1kW 50Hz
200v, 220v
380v, 400v
1.1kW 60Hz
200v, 220v, 230v
440v, 460v, 480v
357 544 35 148 309 398 25.8 70
FX5002 1675 @ 50Hz
2000 @ 60Hz
1.5kW 50Hz
200v, 220v,
380v, 400v
1.5kW 60Hz
200v, 220v, 230v,
440v, 460v, 480v
357 634.5 35 198 432 485 36.8 73
FX6002 2000 @ 50Hz
2400 @ 60Hz
2.2kW 50Hz
200v, 220v,
380v, 400v
2.2kW 60Hz
220v, 230v,
440v, 460v, 480v
438 638.5 35 198 432 485 36.8 73

*Motors to be used on specified voltages only.

*Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.
